Ideas and discoveries

20 June 2022

Unique solution to rid houses of mould. Now patented

Miloš Kalousek’s idea helps people who cannot afford thermal insulation get rid of mould | Autor: Unsplash

Get rid of mould on the walls with an ordinary aluminium sheet. Miloš Kalousek from the Faculty of Civil Engineering BUT came up with this simple but very effective solution. He has even obtained a patent for this solution that distributes heat through the wall and prevents condensation. According to Kalousek, aluminium sheets are not supposed to replace conventional insulation. Rather, they could help to bridge the time before the owners save up enough money for the conventional insulation.

Miloš Kalousek from the FCE BUT deals with modelling of two- and three-dimensional structures as well as thermal imaging of buildings and thermal bridges. These two fields intersect in this solution, for which he recently received a patent. “When modelling, I found that the buildings behaved differently than I expected. Despite the fact that I was adding thermal insulation, the surface temperatures were getting worse,” says Kalousek. He remembered his doctoral studies, during which he had the opportunity to calculate an electronic board for an Italian satellite. “In that case, it was not possible to dissipate heat the traditional way by convection, but only by conduction through the board. That is why conductive copper plates were used,” Miloš Kalousek explained. Therefore, he tried to put thermally conductive material instead of thermal insulation in his building models. “At that point, temperatures rose above the dew point and above the desired temperature,” he says. The aluminium sheets thus prevented condensation and subsequent mould formation on the inner surface.

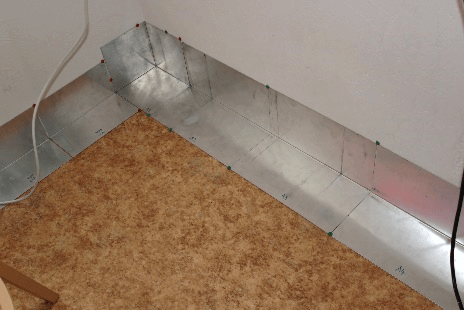

In households, the sheet can be placed under the plaster | Autor: archives of Miloš Kalousek
He has used the solution in several apartments in Brno and he measures and checks whether it is actually functional in the long term every year. “In one part of Brno, weaker development projects were being built. They have single-layer masonry without any insulation system. I have applied the solution in five such apartments and I check it every year by thermal imaging. It works. There is no condensation or mould formation. Not even on the windows,” Kalousek confirms. The aluminium sheets are impermeable to water vapour and thus act as an effective vapour barrier. In addition, Miloš Kalousek found during the modelling that the application of conductive materials leads to long-term drying in mould-affected corners of rooms.

People do not have to worry about having sheet metal all around their rooms. “It is applied under the plaster, so you cannot see it at all. I then used white painted sheets on the windows,” says Miloš Kalousek.

Moreover, the whole solution could be even more elegant in the future. “There are conductive materials other than aluminium that could be used. I can imagine using, for example, Graphene, which has up to 50 times higher conductivity. At the same time, its thickness is reduced, so it could be applied by spraying,” says the author of the patent about its future developments.

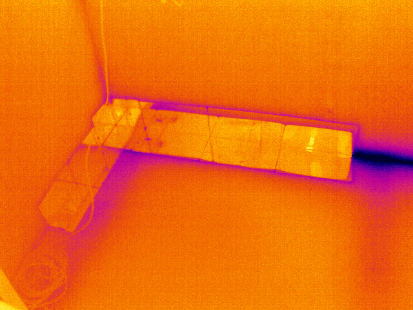

Thermal image of the patented solution | Autor: archives of Miloš Kalousek
However, Miloš Kalousek points out that aluminium sheets are not a one-size-fits-all solution. “In really old buildings, the walls are usually no longer suitable because water vapour condenses over the entire surface of the structure. Many houses are still based forty-five centimetres, solid brick. The houses are not insulated and people have no money to repair them. But aluminium sheets will not help there, because there is nowhere to draw the heat from,” Kalousek explains. Likewise, he notes that sometimes mould is caused by behaviour of the inhabitants, not the structure itself. “If people are using the apartment incorrectly, forget to ventilate and keep the humidity high, nothing can help,” he says.

Kalousek hopes that he will be able to launch a project to tackle mould using conductive materials so that he can continue his research. Since none of the construction companies approached has shown interest in the patent so far, he is also considering setting up his own spin-off.
