Software as a bachelor thesis helps with soil erosion research

Lukáš Dobrovolný continues his studies of mechatronics | Autor: Jan Prokopius
BUT to itself. This could be the motto of the bachelor thesis of Lukáš Dobrovolný. A mechatronics student from the Faculty of Mechanical Engineering has created software that facilitates the work of experts of the Faculty of Civil Engineering researching soil erosion. Until recently, they had to process the measurement images manually.

When Veronika Sobotková and her colleagues from the Faculty of Civil Engineering of BUT go out to make field measurements, she returns with dozens of photographs. On all of them there is a so-called erodometer, which can be described as a large frame with needles that lower to the ground and show the profile of soil damaged by erosion. "Erodometer is a device that was designed and manufactured by the Institute of Landscape Water Management. It allows the measurement of the soil surface profile and the quantification of the volume of erosion grooves that can occur on sloping land after torrential rains. Hundreds of erosion groove profiles were surveyed directly in the field with results many times exceeding the permissible soil losses," explains Sobotková.

In a single day of field measurements, about one hundred to one hundred and sixty photographs are created. Each had to be processed manually: in the computer, manually clicking the vertices of all the needles in the image, creating a curve from them and comparing it with the previous results. Dealing with one photograph in this way took about ten minutes.


The software can process one photo in about ten seconds.

Some time ago, when Sobotková accidentally got into a conversation with Roman Adámek of the Mechatronic Laboratory of the Faculty of Mechanical Engineering of the Brno University of Technology, he offered to try to make their work connected with image processing easier. Later, FME student Lukáš Dobrovolný decided to take up this topic as his bachelor thesis.

Faster and less work-demanding

"I was intrigued by the topic, it concerned the issue of image processing," says Dobrovolny. He created a special software for image processing that can process one picture in about ten seconds. "I use the contrast between the black background and the light needles. I convert the picture to a binary image and an algorithm then detects the tops of the needles. In case some of them fail to get detected – for example, due to lighting conditions or when a leaf obstructs the shot – the user still has the option to manually correct the points. Even so, it is a great time saving, because there are about a hundred needles in the frame, "says Dobrovolny.

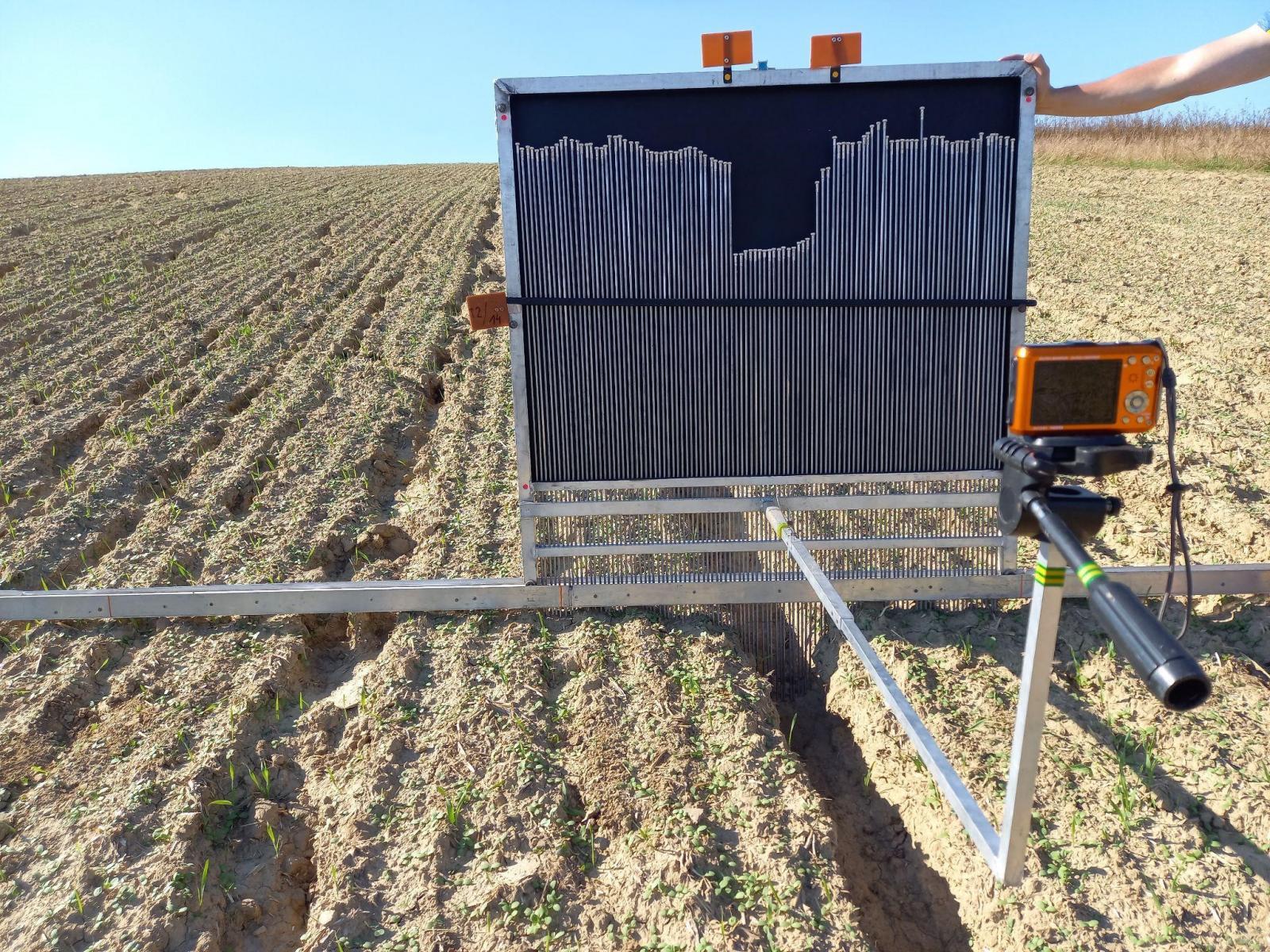

Photos from erodometer measurements | Autor: archive FAST VUT
According to him, Lukáš was helped with the topic of image processing by e-learning courses from MathWorks, which are available to BUT students and employees free of charge. In addition to the algorithm, he also put a lot of work into creating a user interface so that colleagues from FAST could easily work with the software. "I promised to develop some other functionalities for them, but these are just small things," says Dobrovolny, at this time already a first-year student of the master's degree in Mechatronics.

"I find it inspiring that this is an issue from a completely different field, which we were able to solve thanks to our knowledge of image processing. The student himself came up with a proposal on how to solve the detection of needles in the image, together we just fine-tuned the details. Colleagues from the Faculty of Civil Engineering compared the new software with the accuracy of the existing method and both procedures came out similarly accurate – with the difference that the manual method is incomparably more laborious, "adds the Supervisor of the bachelor thesis Roman Adámek.

His words are confirmed by Veronika Sobotková, who estimates the time savings in processing one photograph of around ten minutes. Her team will then have more time to research the hot topic of soil erosion. "Based on the erosion bridge measurements, we determined various patterns of erosion groove formation, parameters of emerging grooves and prediction of their occurrence. Based on our research and cooperation with the T. G. Masaryk Water Research Institute, the Critical Points Methodology was created, according to which critical points are determined, indicating that it is necessary to initiate anti-erosion and flood protection measures at the given location," concludes Sobotková.
